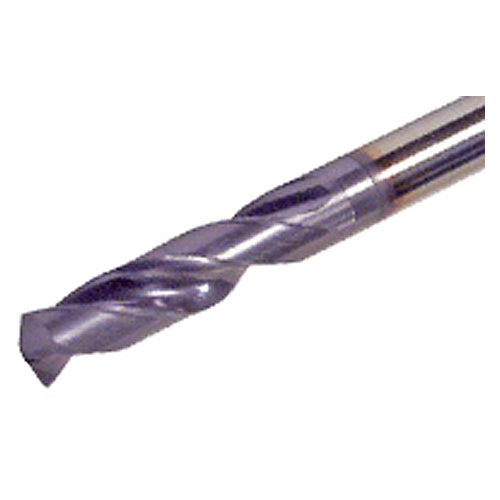

SCD 132-043-140 AP3 IC908
Item #: EH555530418
Brand: Iscar
Model #: 5530418
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 13.2 mm |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 13.2 mm |
| Tool Type | Solid Carbide Drill |
| Length Group | 3D |
| Grade | IC908 |
| Coating | TiAlN |
| Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Usable Length (LU) | 43 mm |
| Application | | Drilling | |
| Length Chip Flute (LCF) | 60 mm |
| Connection Diameter Machine Side (DCONMS) | 14 mm |
| Overall Length (OAL) | 107 mm |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 |
| Body Material | Carbide |
| Shank Length (LS) | 45 mm |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round |
