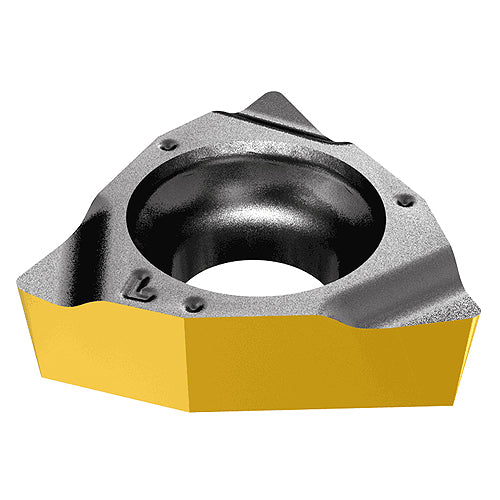

WBGT 520L IC807
Item #: EH5550509
Brand: Iscar
Model #: 5550509
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Tool Type | Turn Positive Inserts |
| Application | | Insert | Int. 80° Trigon 93° Approach | |
| Min D.O.C. | 0.004″ |
| Insert Style | WBGT |
| Depth of Cut Maximum (APMX) | 0.039″ |
| Corner Radius (RE) | 0.008″ |
| Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Insert Size | 520 |
| Max. Turning Feed (ft(max)) | 0.0039 ″/rev |
| Cutting Edge Length (L) | 0.086″ |
| Clearance Angle Major (AN) | 5 Degrees |
| Insert Thickness (S) | 0.063″ |
| Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 0.156″ |
| Chip Breaker Type | T |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | TiAlN+TiN |
| Shape | 80° Trigon |
| Grade | IC807 |
| Body Material | Carbide |
