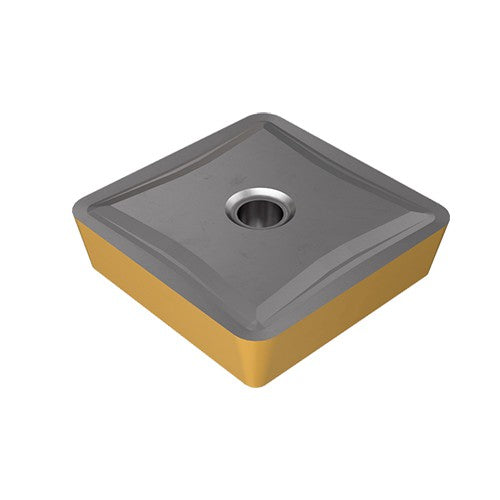

SPMR 423 IC8150
Item #: EH5550438
Brand: Iscar
Model #: 5550438
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Cast Iron | |
| Tool Type | Turn Positive Inserts |
| Application | | Ext. 90° Square 45° Approach | Ext. 90°Square 45°Face&Turn Ap | Insert | Int. Square 75° Approach | |
| Min D.O.C. | 0.059″ |
| Insert Style | SPMR |
| Depth of Cut Maximum (APMX) | 0.236″ |
| Corner Radius (RE) | 0.0472″ |
| Min. Turning Feed (ft(min)) | 0.0079 ″/rev |
| Insert Size | 423 |
| Max. Turning Feed (ft(max)) | 0.0177 ″/rev |
| Cutting Edge Length (L) | 1/2″ |
| Clearance Angle Major (AN) | 11 Degrees |
| Insert Thickness (S) | 1/8″ |
| Chip Breaker Type | R |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Shape | 90° Square |
| Coating | TiCN+Al2O3+TiCN+TiN |
| Body Material | Carbide |
| Grade | IC8150 |
