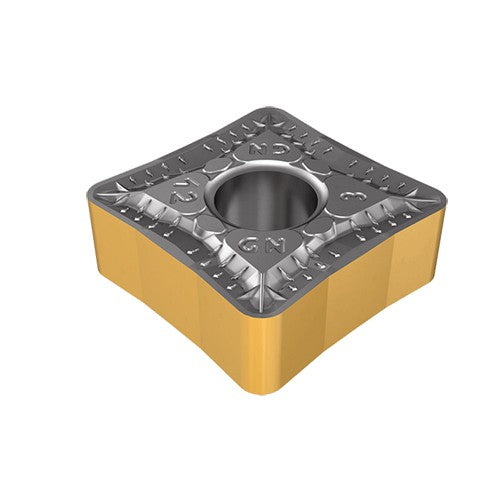

QNMG 332-GN IC8150
Item #: EH5550373
Brand: Iscar
Model #: 5550373
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Cast Iron | |
| Grade | IC8150 |
| Application | | Ext. 80° Q#MG 95° Approach | Ext. 80° Q#MG 95°Approach Face | Ext. 90°Square 45°Face&Turn Ap | Int. 80° Q#MG 95° Approach | Int. 80° Q#MG 95°Approach Face | ISO Turning Inserts | |
| Tool Type | Turn Negative Inserts |
| Insert Style | QNMG |
| Min D.O.C. | 0.039″ |
| Corner Radius (RE) | 0.031″ |
| Depth of Cut Maximum (APMX) | 0.177″ |
| Insert Size | 332 |
| Min. Turning Feed (ft(min)) | 0.0063 ″/rev |
| Cutting Edge Length (L) | 0.406″ |
| Max. Turning Feed (ft(max)) | 0.0177 ″/rev |
| Insert Thickness (S) | 0.187″ |
| Chip Breaker Type | GN |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Shape | Q |
| Coating | TiCN+Al2O3+TiCN+TiN |
| Body Material | Carbide |
