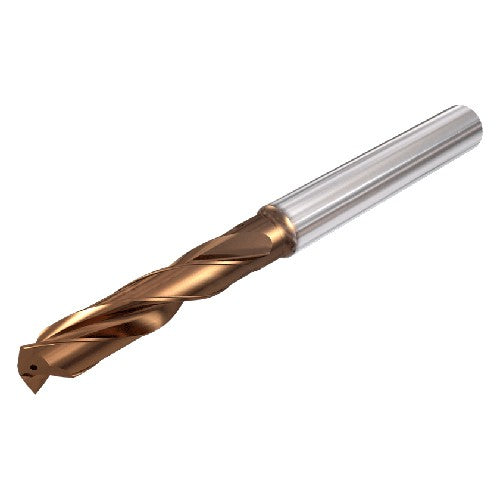

SCD0189-1449-0236 ACP5FL IC608
Item #: EH553411448
Brand: Iscar
Model #: 3411448
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 0.189″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.189″ |
| Grade | IC608 |
| Decimal Equivalent | 0.189″ |
| Measurement Type | Inch |
| Coating | AlTiCrSiN |
| Usable Length (LU) | 1.449″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Length Chip Flute (LCF) | 1.73″ |
| Application | | Drilling | |
| Overall Length (OAL) | 3.228″ |
| Connection Diameter Machine Side (DCONMS) | 0.236″ |
| Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | Through Hole |
| Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 |
| Body Material | Carbide |
| Shank Length (LS) | 1-1/2″ |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round |
