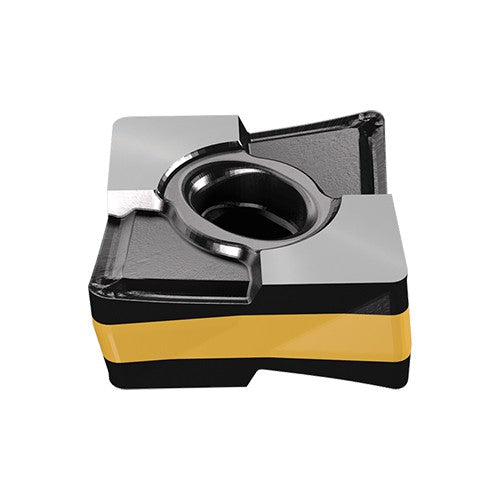

CXMG 090408-M3P IC8150
Item #: EH553397313
Brand: Iscar
Model #: 3397313
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Cast Iron | |
| Coating | TiCN+Al2O3+TiCN+TiN |
| Application | | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | ISO Turning Inserts | |
| Grade | IC8150 |
| Insert Style | CXMG |
| Tool Type | Turn Negative Inserts |
| Corner Radius (RE) | 0.0315″ |
| Min D.O.C. | 0.031″ |
| Insert Size | 090408 |
| Depth of Cut Maximum (APMX) | 0.118″ |
| Cutting Edge Length (L) | 0.406″ |
| Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Insert Thickness (S) | 0.183″ |
| Max. Turning Feed (ft(max)) | 0.0197 ″/rev |
| Inscribed Circle Diameter (IC) | 0.368″ |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
