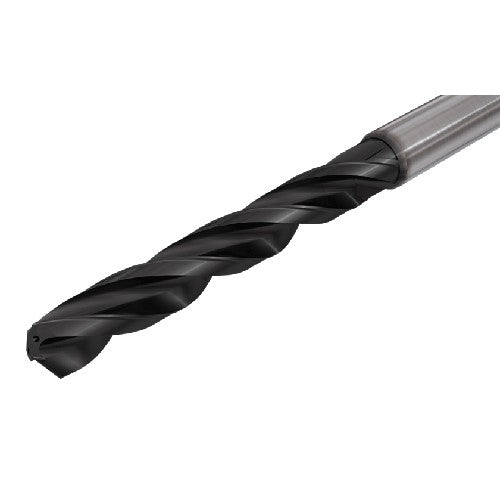

SCCD 055-035-060 ACP5 IC908
Item #: EH553390166
Brand: Iscar
Model #: 3390166
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 5.5 mm |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5.5 mm |
| Grade | IC908 |
| Length Group | 5D |
| Measurement Type | Metric |
| Coating | TiAlN |
| Usable Length (LU) | 35 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Length Chip Flute (LCF) | 45 mm |
| Application | | Drilling | |
| Overall Length (OAL) | 82 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | Through Hole |
| Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 3 |
| Body Material | Carbide |
| Shank Length (LS) | 36 mm |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round |
