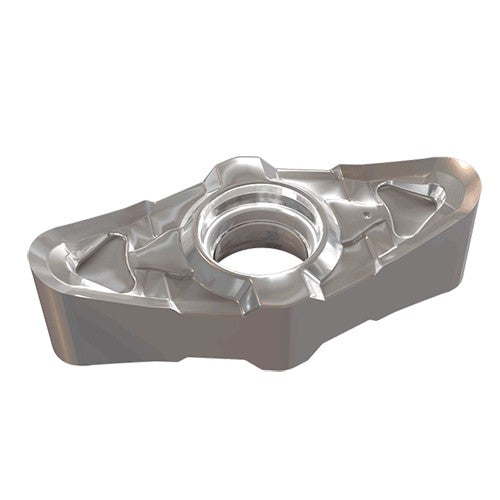

VNGU 220612-R3N IC20
Item #: EH553370081
Brand: Iscar
Model #: 3370081
| Product Specifications | |
|---|---|
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Grade | IC20 |
| Application | | Ext 35° Diamond 107.5° Approac | Ext. 35° Diamond 72.5° Approac | Int. 35° Diamond 107.5°Approa | ISO Turning Inserts | |
| Tool Type | Turn Negative Inserts |
| Insert Style | VNGU |
| Min D.O.C. | 0.039″ |
| Corner Radius (RE) | 0.0472″ |
| Depth of Cut Maximum (APMX) | 0.177″ |
| Insert Size | 220612 |
| Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Cutting Edge Length (L) | 0.866″ |
| Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Thickness (S) | 0.267″ |
| Chip Breaker Type | R3N |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Coating | Uncoated |
