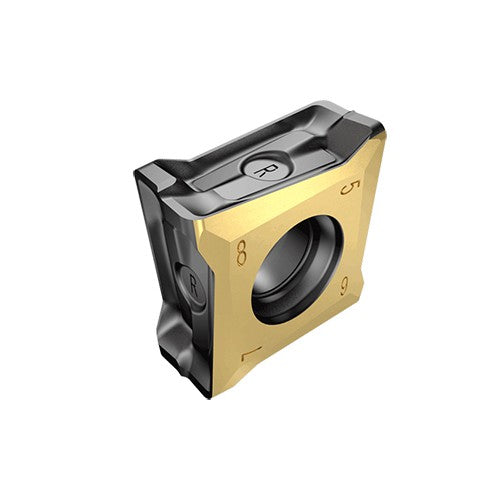

T890 LNHT 1306PNTR IC5100
Item #: EH553362797
Brand: Iscar
Model #: 3362797
| Product Specifications | |
|---|---|
| Applicable Material | | Cast Iron | |
| Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Application | | Facing | Milling Inserts | Shouldering | Slotting | |
| Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.543″ |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ |
| Tool Type | Mill Tangential Inserts |
| Depth of Cut Maximum (APMX) | 0.374″ |
| Figure | 1 |
| Insert Width (W1) | 0.236″ |
| Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Wiper Edge Length (BS) | 0.039″ |
| Number of Cutting Edges | 8 |
| Coating | TiCN+Al2O3 |
| Measurement Type | Inch |
| Grade | IC5100 |
| Body Material | Carbide |
