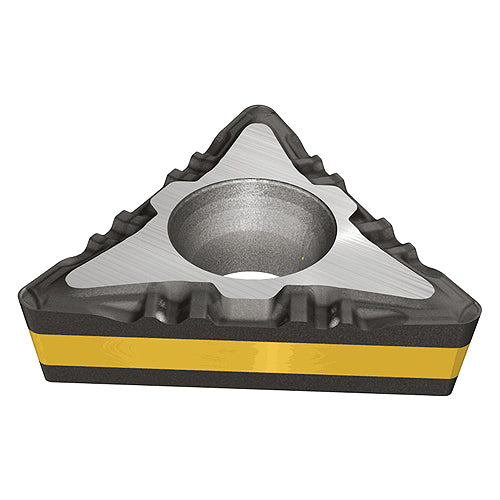

TCMT 2-1-F3P IC807
Item #: EH553358943
Brand: Iscar
Model #: 3358943
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Tool Type | Turn Positive Inserts |
| Application | | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 90° Approach | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | ISO Turning Inserts | |
| Fixing Hole Diameter (D1) | 0.11″ |
| Insert Style | TCMT |
| Min D.O.C. | 0.004″ |
| Corner Radius (RE) | 0.016″ |
| Depth of Cut Maximum (APMX) | 0.067″ |
| Insert Size | 2-1 |
| Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 0.433″ |
| Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Insert Thickness (S) | 0.094″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Chip Breaker Type | F3P |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | TiAlN+TiN |
| Body Material | Carbide |
| Grade | IC807 |
