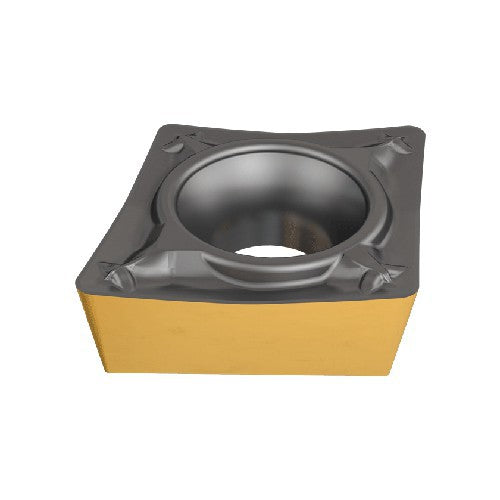

CCMT 432-M3P IC8250
Item #: EH553344283
Brand: Iscar
Model #: 3344283
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | |
| Grade | IC8250 |
| Application | | Int. 80° Diamond 95° Approach | Int. 80°Diamond 90° Approach | Int. Back Turning 80° Diamond | Int. Chamfering 80° Diamond | ISO Turning Inserts | |
| Tool Type | Turn Positive Inserts |
| Insert Style | CCMT |
| Fixing Hole Diameter (D1) | 0.217″ |
| Corner Radius (RE) | 0.0315″ |
| Min D.O.C. | 0.039″ |
| Insert Size | 432 |
| Depth of Cut Maximum (APMX) | 0.157″ |
| Cutting Edge Length (L) | 0.508″ |
| Min. Turning Feed (ft(min)) | 0.0059 ″/rev |
| Insert Thickness (S) | 0.187″ |
| Max. Turning Feed (ft(max)) | 0.0157 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN |
| Body Material | Carbide |
