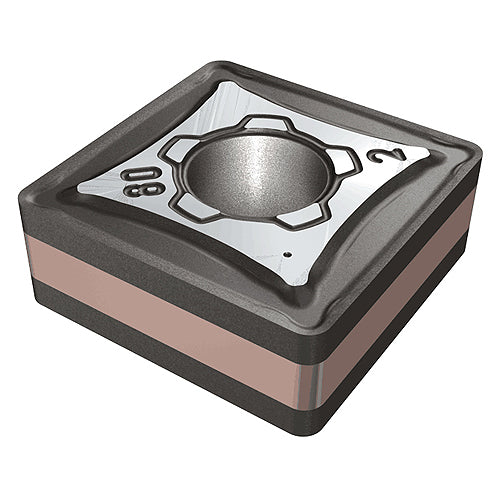

SNMG 432-M3M IC830
Item #: EH553328895
Brand: Iscar
Model #: 3328895
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Grade | IC830 |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | Insert | Int. Square 75° Approach | |
| Tool Type | Turn Negative Inserts |
| Insert Style | SNMG |
| Fixing Hole Diameter (D1) | 0.203″ |
| Corner Radius (RE) | 0.0315″ |
| Min D.O.C. | 0.02″ |
| Insert Size | 432 |
| Depth of Cut Maximum (APMX) | 0.197″ |
| Cutting Edge Length (L) | 1/2″ |
| Min. Turning Feed (ft(min)) | 0.0059 ″/rev |
| Insert Thickness (S) | 0.187″ |
| Max. Turning Feed (ft(max)) | 0.0197 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Chip Breaker Type | M3M |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | AlTiN+TiN |
| Body Material | Carbide |
