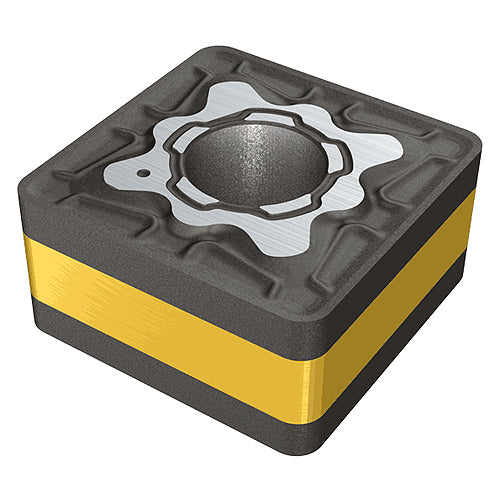

SNMG 544-M3P IC830
Item #: EH553328878
Brand: Iscar
Model #: 3328878
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Grade | IC830 |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | Insert | Int. Square 75° Approach | |
| Tool Type | Turn Negative Inserts |
| Insert Style | SNMG |
| Min D.O.C. | 0.047″ |
| Corner Radius (RE) | 0.063″ |
| Depth of Cut Maximum (APMX) | 0.295″ |
| Insert Size | 544 |
| Min. Turning Feed (ft(min)) | 0.0079 ″/rev |
| Cutting Edge Length (L) | 5/8″ |
| Max. Turning Feed (ft(max)) | 0.0276 ″/rev |
| Insert Thickness (S) | 1/4″ |
| Chip Breaker Type | M3P |
| Inscribed Circle Diameter (IC) | 5/8″ |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Coating | AlTiN+TiN |
