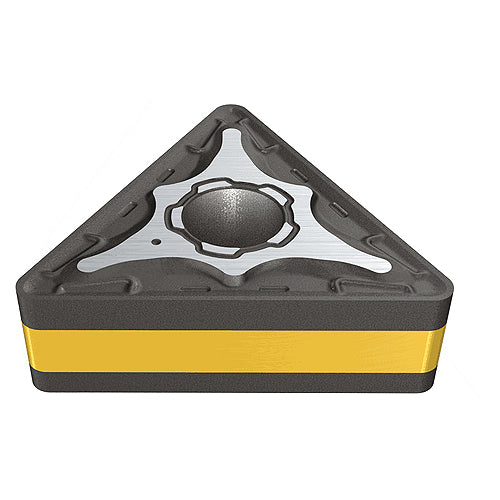

TNMG 434-M3P IC830
Item #: EH553328847
Brand: Iscar
Model #: 3328847
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Grade | IC830 |
| Application | | Ext. 60° Triang.93° Appr. Open | Ext. 60° Triangle 60° Approach | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle Facing | Insert | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | |
| Tool Type | Turn Negative Inserts |
| Insert Style | TNMG |
| Min D.O.C. | 0.039″ |
| Corner Radius (RE) | 0.063″ |
| Depth of Cut Maximum (APMX) | 0.26″ |
| Insert Size | 434 |
| Min. Turning Feed (ft(min)) | 0.0091 ″/rev |
| Cutting Edge Length (L) | 0.866″ |
| Max. Turning Feed (ft(max)) | 0.0256 ″/rev |
| Insert Thickness (S) | 0.187″ |
| Chip Breaker Type | M3P |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Coating | AlTiN+TiN |
