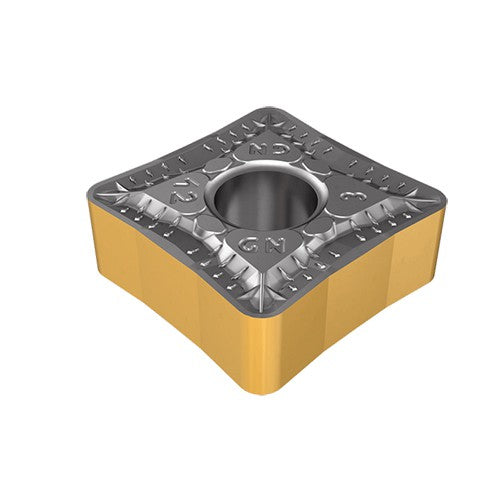

QNMG 432-GN IC830
Item #: EH553308185
Brand: Iscar
Model #: 3308185
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Grade | IC830 |
| Application | | Ext. 80° Q#MG 95° Approach | Ext. 80° Q#MG 95°Approach Face | Ext. 90°Square 45°Face&Turn Ap | Insert | Int. 80° Q#MG 95° Approach | Int. 80° Q#MG 95°Approach Face | |
| Tool Type | Turn Negative Inserts |
| Insert Style | QNMG |
| Min D.O.C. | 0.039″ |
| Corner Radius (RE) | 0.031″ |
| Depth of Cut Maximum (APMX) | 0.177″ |
| Insert Size | 432 |
| Min. Turning Feed (ft(min)) | 0.0063 ″/rev |
| Cutting Edge Length (L) | 0.525″ |
| Max. Turning Feed (ft(max)) | 0.0177 ″/rev |
| Insert Thickness (S) | 0.187″ |
| Chip Breaker Type | GN |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Shape | Q |
| Coating | AlTiN+TiN |
| Body Material | Carbide |
