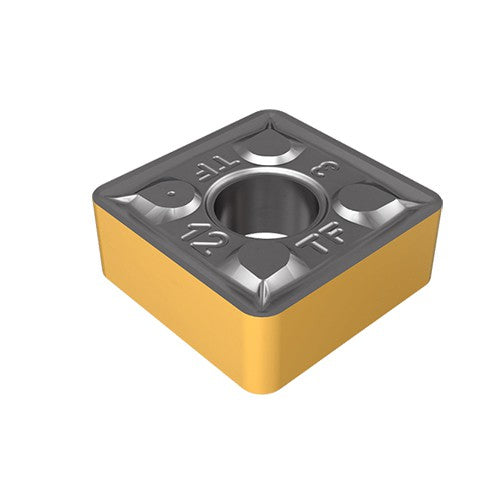

SNMG 432-TF IC6015
Item #: EH5509553
Brand: Iscar
Model #: 5509553
| Product Specifications | |
|---|---|
| Applicable Material | | Stainless Steel | |
| Tool Type | Turn Negative Inserts |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | Insert | Int. Square 75° Approach | |
| Min D.O.C. | 0.039″ |
| Insert Style | SNMG |
| Depth of Cut Maximum (APMX) | 0.157″ |
| Corner Radius (RE) | 0.0315″ |
| Min. Turning Feed (ft(min)) | 0.0051 ″/rev |
| Insert Size | 432 |
| Max. Turning Feed (ft(max)) | 0.0138 ″/rev |
| Cutting Edge Length (L) | 1/2″ |
| Chip Breaker Type | TF |
| Insert Thickness (S) | 0.187″ |
| Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Shape | 90° Square |
| Cutting Edge Material | Carbide |
| Series/List # | SNMG 432-TF |
| Coating | TiCN+Al2O3+TiN |
| Body Material | Carbide |
| Grade | IC6015 |
