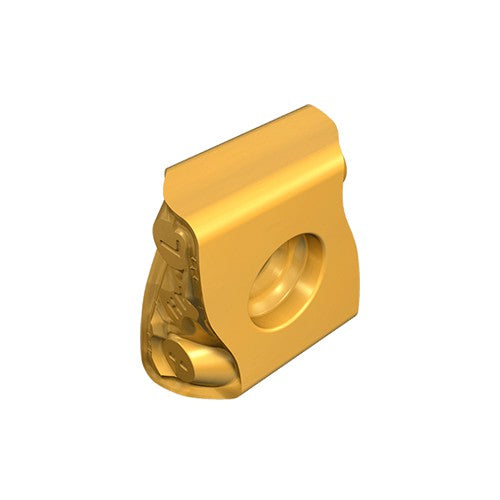

LNMX 110412L-HM IC8250
Item #: EH5508655
Brand: Iscar
Model #: 5508655
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | |
| Tool Type | Turn Negative Inserts |
| Application | | Ext. Tangential 93° Approach | Ext. Tangential 93°Face Approa | Insert | Int. Tangential 93° Approach | |
| Min D.O.C. | 0.039″ |
| Insert Style | LNMX |
| Depth of Cut Maximum (APMX) | 0.197″ |
| Corner Radius (RE) | 0.0472″ |
| Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Insert Size | 110412 |
| Max. Turning Feed (ft(max)) | 0.0157 ″/rev |
| Cutting Edge Length (L) | 0.433″ |
| Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 0.449″ |
| Chip Breaker Type | HM |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN |
| Shape | 90° Rectangular |
| Grade | IC8250 |
| Body Material | Carbide |
