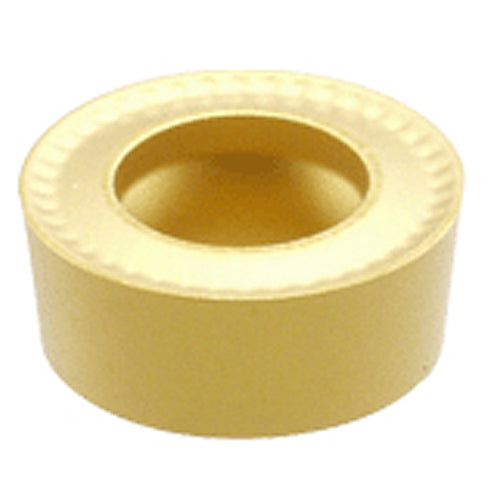

RCMT 0803M0-SR IC9150
Item #: EH5507646
Brand: Iscar
Model #: 5507646
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Cast Iron | |
| Fixing Hole Diameter (D1) | 0.134″ |
| Application | | Ext. Round Face & Turn | Ext. Round Insert Neutral | Insert | |
| Min D.O.C. | 0.039″ |
| Insert Style | RCMT |
| Depth of Cut Maximum (APMX) | 0.177″ |
| Insert Size | 0803M0 |
| Min. Turning Feed (ft(min)) | 0.0118 ″/rev |
| Insert Thickness (S) | 1/8″ |
| Max. Turning Feed (ft(max)) | 0.0177 ″/rev |
| Inscribed Circle Diameter (IC) | 0.315″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Material | Carbide |
| Chip Breaker Type | SR |
| Coating | TiCN+Al2O3+TiN |
| Measurement Type | Inch |
| Grade | IC9150 |
| Shape | Round |
| Tool Type | Turn Positive Inserts |
| Body Material | Carbide |
