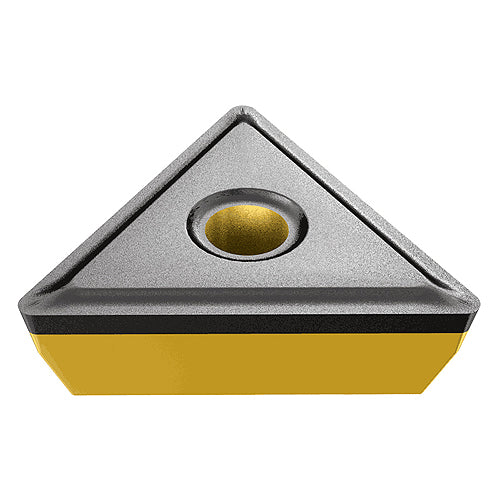

TPMR 731 IC9250
Item #: EH5507594
Brand: Iscar
Model #: 5507594
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | |
| Tool Type | Turn Positive Inserts |
| Application | | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle Facing | Insert | Int. 60° Triangle 91° Approach | |
| Min D.O.C. | 0.039″ |
| Insert Style | TPMR |
| Depth of Cut Maximum (APMX) | 0.138″ |
| Corner Radius (RE) | 0.016″ |
| Min. Turning Feed (ft(min)) | 0.0059 ″/rev |
| Insert Size | 731 |
| Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Cutting Edge Length (L) | 0.378″ |
| Clearance Angle Major (AN) | 11 Degrees |
| Insert Thickness (S) | 0.094″ |
| Chip Breaker Type | R |
| Inscribed Circle Diameter (IC) | 0.219″ |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Shape | 60° Triangle |
| Coating | TiCN+alpha Al2O3+TiN |
| Body Material | Carbide |
| Grade | IC9250 |
