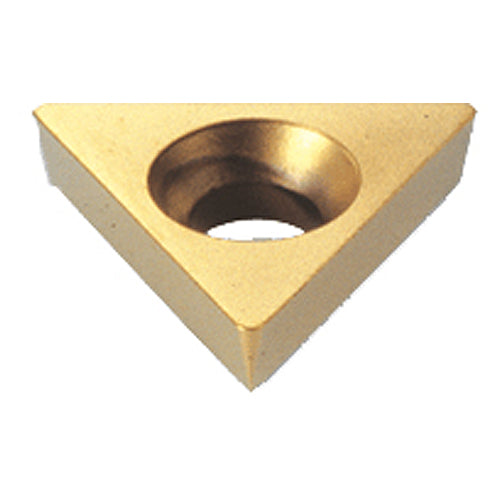

TPGB 2-1 IC570
Item #: EH5503783
Brand: Iscar
Model #: 5503783
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | |
| Tool Type | Turn Positive Inserts |
| Application | | Insert | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | |
| Fixing Hole Diameter (D1) | 0.118″ |
| Insert Style | TPGB |
| Min D.O.C. | 0.039″ |
| Corner Radius (RE) | 0.0157″ |
| Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Size | 2-1 |
| Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 0.433″ |
| Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Insert Thickness (S) | 0.094″ |
| Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Chip Breaker Type | W |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | TiCN+TiN |
| Shape | 60° Triangle |
| Grade | IC570 |
| Body Material | Carbide |
