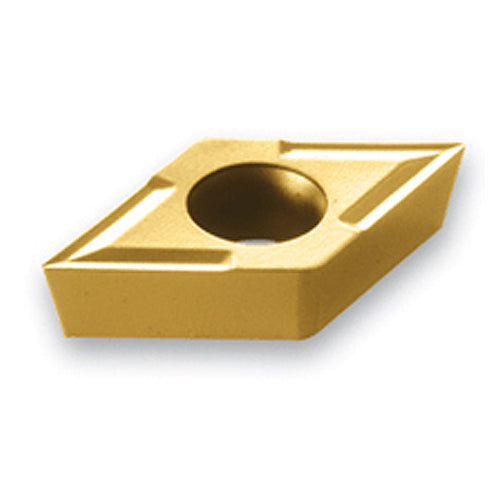

DCGT 2-0 IC30N
Item #: EH5503025
Brand: Iscar
Model #: 5503025
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hard Materials | |
| Tool Type | Turn Positive Inserts |
| Application | | Ext. 55° Diamond 107.5° Appr. | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 91° Approach | Ext. 55° Diamond 93° Approach | Insert | Int 55° Diamond 93 5° Approach | |
| Fixing Hole Diameter (D1) | 0.11″ |
| Insert Style | DCGT |
| Min D.O.C. | 0.02″ |
| Corner Radius (RE) | 0.0079″ |
| Depth of Cut Maximum (APMX) | 0.079″ |
| Insert Size | 2-0 |
| Min. Turning Feed (ft(min)) | 0.0031 ″/rev |
| Cutting Edge Length (L) | 0.303″ |
| Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Insert Thickness (S) | 0.094″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Chip Breaker Type | 14 |
| Cutting Edge Material | Cermet |
| Measurement Type | Inch |
| Coating | Uncoated |
| Shape | 55° Rhombic |
| Grade | IC30N |
| Body Material | Carbide |
