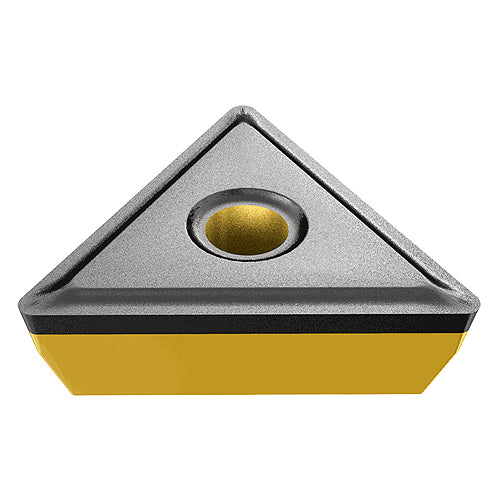

TPMR 221 IC20N
Item #: EH5502776
Brand: Iscar
Model #: 5502776
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | |
| Tool Type | Turn Positive Inserts |
| Application | | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle Facing | Insert | Int. 60° Triangle 91° Approach | |
| Min D.O.C. | 0.039″ |
| Insert Style | TPMR |
| Depth of Cut Maximum (APMX) | 0.138″ |
| Corner Radius (RE) | 0.0157″ |
| Min. Turning Feed (ft(min)) | 0.0059 ″/rev |
| Insert Size | 221 |
| Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Cutting Edge Length (L) | 0.433″ |
| Clearance Angle Major (AN) | 11 Degrees |
| Insert Thickness (S) | 1/8″ |
| Chip Breaker Type | R |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Measurement Type | Inch |
| Cutting Edge Material | Cermet |
| Shape | 60° Triangle |
| Coating | Uncoated |
| Body Material | Carbide |
| Grade | IC20N |
