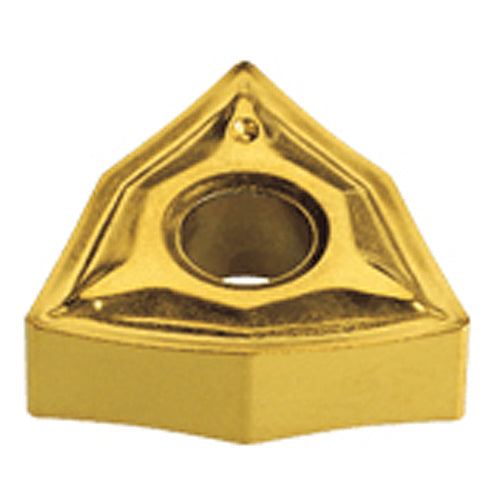

WNMG 3-2-NF IC10
Item #: EH5502743
Brand: Iscar
Model #: 5502743
| Product Specifications | |
|---|---|
| Applicable Material | | Cast Iron | Non Ferrous Metals | Hi Temp Alloys | |
| Tool Type | Turn Negative Inserts |
| Application | | Ext. 80° Trigon 95° Approach | Insert | Int. 80° Trigon 95° Approach | |
| Min D.O.C. | 0.024″ |
| Insert Style | WNMG |
| Depth of Cut Maximum (APMX) | 0.118″ |
| Corner Radius (RE) | 0.0315″ |
| Min. Turning Feed (ft(min)) | 0.0031 ″/rev |
| Insert Size | 3-2 |
| Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Cutting Edge Length (L) | 0.257″ |
| Chip Breaker Type | NF |
| Insert Thickness (S) | 0.156″ |
| Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Shape | 80° Trigon |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Grade | IC10 |
