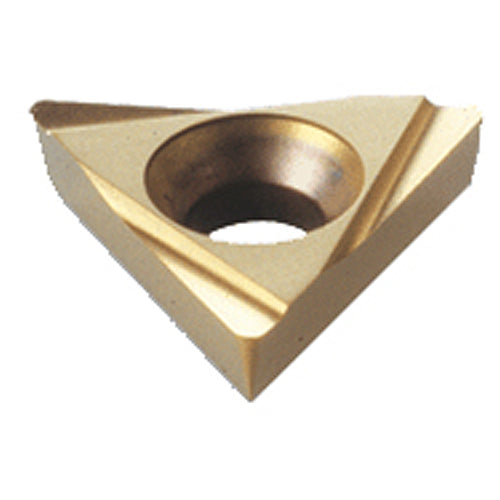

TPGH 321-R IC70
Item #: EH5502161
Brand: Iscar
Model #: 5502161
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | |
| Fixing Hole Diameter (D1) | 0.169″ |
| Application | | Insert | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | |
| Min D.O.C. | 0.039″ |
| Insert Style | TPGH |
| Depth of Cut Maximum (APMX) | 0.157″ |
| Corner Radius (RE) | 0.0157″ |
| Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Insert Size | 321 |
| Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Cutting Edge Length (L) | 0.65″ |
| Clearance Angle Major (AN) | 11 Degrees |
| Insert Thickness (S) | 1/8″ |
| Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Chip Breaker Type | H |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | Uncoated |
| Shape | 60° Triangle |
| Grade | IC70 |
| Body Material | Carbide |
| Tool Type | Turn Positive Inserts |
