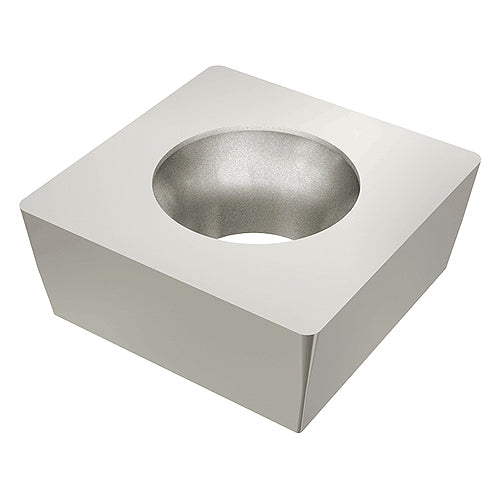

SCMW 3-1 IC20
Item #: EH5500717
Brand: Iscar
Model #: 5500717
| Product Specifications | |
|---|---|
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Grade | IC20 |
| Application | | Chamfering & Bottom Deburring | Countersinking | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90°Square 45°Face&Turn Ap | Milling Inserts | Slanted Shoulder & Chamfer | |
| Tool Type | Turn Positive Inserts |
| Insert Style | SCMW |
| Fixing Hole Diameter (D1) | 0.173″ |
| Corner Radius (RE) | 0.0157″ |
| Min. Turning Feed (ft(min)) | 0.0031 ″/rev |
| Insert Size | 3-1 |
| Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Cutting Edge Length (L) | 3/8″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 0.156″ |
| Chip Breaker Type | W |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Shape | 90° Square |
| Coating | Uncoated |
| Body Material | Carbide |
