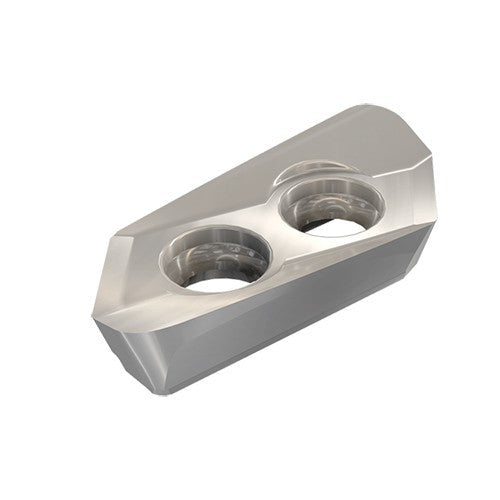

HSM90S APCR 220708R-P IC08
Item #: EH453337443
Brand: Iscar
Model #: 3337443
| Product Specifications | |
|---|---|
| Applicable Material | | Non Ferrous Metals | |
| Grade | IC08 |
| Application | | Facing | Helical Interpolation | Milling Inserts | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
| Cutting Edge Length (L) | 1.15″ |
| Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 1.15″ |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ |
| Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.8661″ |
| Number of Cutting Edges | 2 |
| Insert Width (W1) | 0.516″ |
| Cutting Edge Effective Length (LE) | 1.15″ |
| Insert Thickness (S) | 0.272″ |
| Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.197″ |
| Body Material | Carbide |
| Coating | Uncoated |
