Brand: Widia / Part #: 3656136
Item #: 98284672
Brand: Widia
Model #: 3656136
Product Specifications
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Groove Width (Decimal Inch) | 0.0591 |
| Minimum Groove Width (Decimal Inch) | 0.0551 |
| Toolholder Style | WMTCL |
| Tool Material | Steel |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | C015 |
| Insert Compatibility | WMTC015N00CM08 |
| Shank Height (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Length (Decimal Inch) | 4.0480 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Inch) | 3/4 |
| Series | WMT |
| Overall Length (Decimal Inch) | 5.0000 |

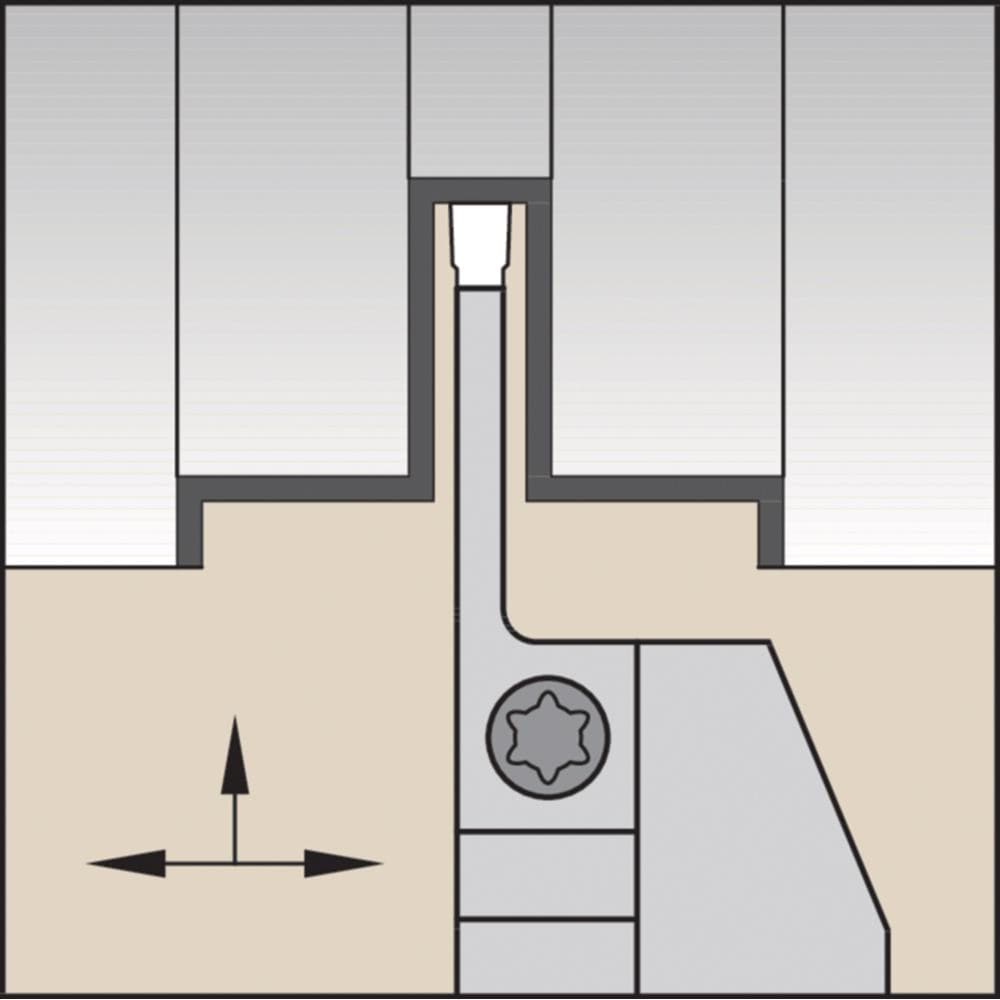

| Cutting Tool Application | Grooving; Cut-Off; Turning |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7500 |
| Head Height (mm) | 26.670 |
| Head Length (Decimal Inch) | 0.9520 |
| Primary Workpiece Material | Universal |
| Insert Seat Size | 1.0 |
| Coolant Through | No |
