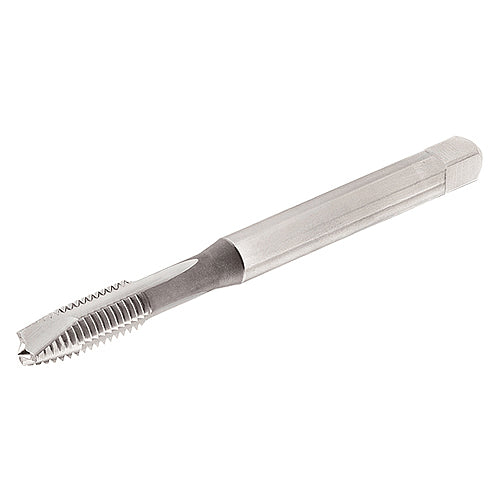

TPG UNC-3/4-10-M HEST
Item #: EH444446097
Brand: Iscar
Model #: 4446097
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 3/4″ |
| Standard | DIN 376 |
| Thread Pitch (TP) | 2.54 mm |
| Tool Type | Machine Through Hole Taps |
| Threads per Inch (TPI) | 10 Threads/" |
| Coating | Steam tempered |
| Thread Standard | THFT | |
| Drive Size (DRVS) | 0.433″ |
| Overall Length (OAL) | 4.921″ |
| Style | DIN 376 |
| Thread Cutting Part Length (THL) | 1.181″ |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.551″ |
| Grade | HEST |
| Flute Count (NOF) | 4 |
| Thread Size | 3/4 - 10 |
| Application | | Taps for Deep Through Hole | Taps for Short Through Hole | |
| Body Material | Carbide |
| Cutting Edge Material | HSS |
| Thread Form Type (THFT) | UN60 |
