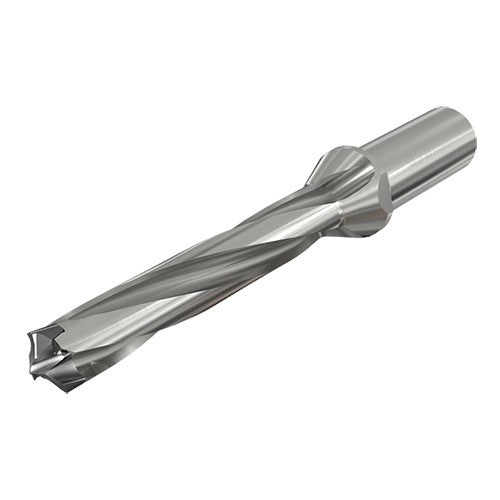

D3N 145-073-16R-5D
Item #: EH323363149
Brand: Iscar
Model #: 3363149
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 14.5 mm |
| Overall Length (OAL) | 150.33 mm |
| Usable Length (LU) | 75.6 mm |
| Shank Length (LS) | 48 mm |
| Length Group | 5D |
| Measurement Type | Metric |
| Application | | Drilling | |
| Master Insert Identification (MIID) | H3P 145 |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Point Length (PL) | 3.1 mm |
| Insert Seat Size Code (SSC) | 14 |
| Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 14.5 mm |
| Flange Diameter (DF) | 20 mm |
| Cutting Diameter Maximum (DCX) | 14.9 mm |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Protruding Length (LPR) | 102.33 mm |
