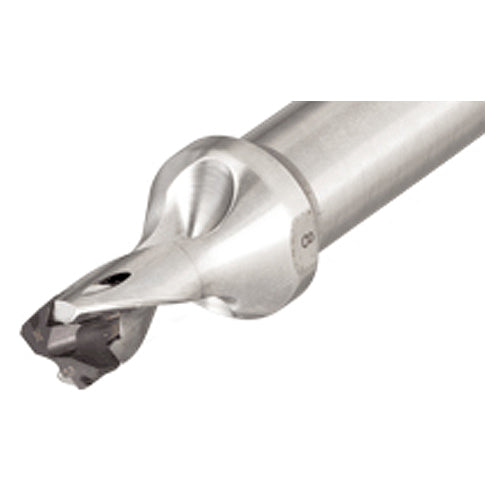

DCN 200-030-25R-1.5D
Item #: EH3202697
Brand: Iscar
Model #: 3202697
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 20 mm |
| Functional Length (LF) | 57.96 mm |
| Usable Length (LU) | 33.02 mm |
| Overall Length (OAL) | 117.6 mm |
| Length Group | 2D |
| Shank Length (LS) | 56 mm |
| Shank Type | Round |
| Coolant Supply Property (CSP) | Through Hole |
| Application | | Drilling | |
| Measurement Type | Metric |
| Tool Type | Indexable Insert Drills |
| Master Insert Identification (MIID) | ICP 200 |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Point Length (PL) | 3.02 mm |
| Insert Seat Size Code (SSC) | 20.0 |
| Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 20 mm |
| Flange Diameter (DF) | 32 mm |
| Cutting Diameter Maximum (DCX) | 20.9 mm |
| Body Diameter Reduced (BDRED) | 32 mm |
| Protruding Length (LPR) | 61.6 mm |
| Connection Code Machine Side (CCMS) | Cylindrical |
