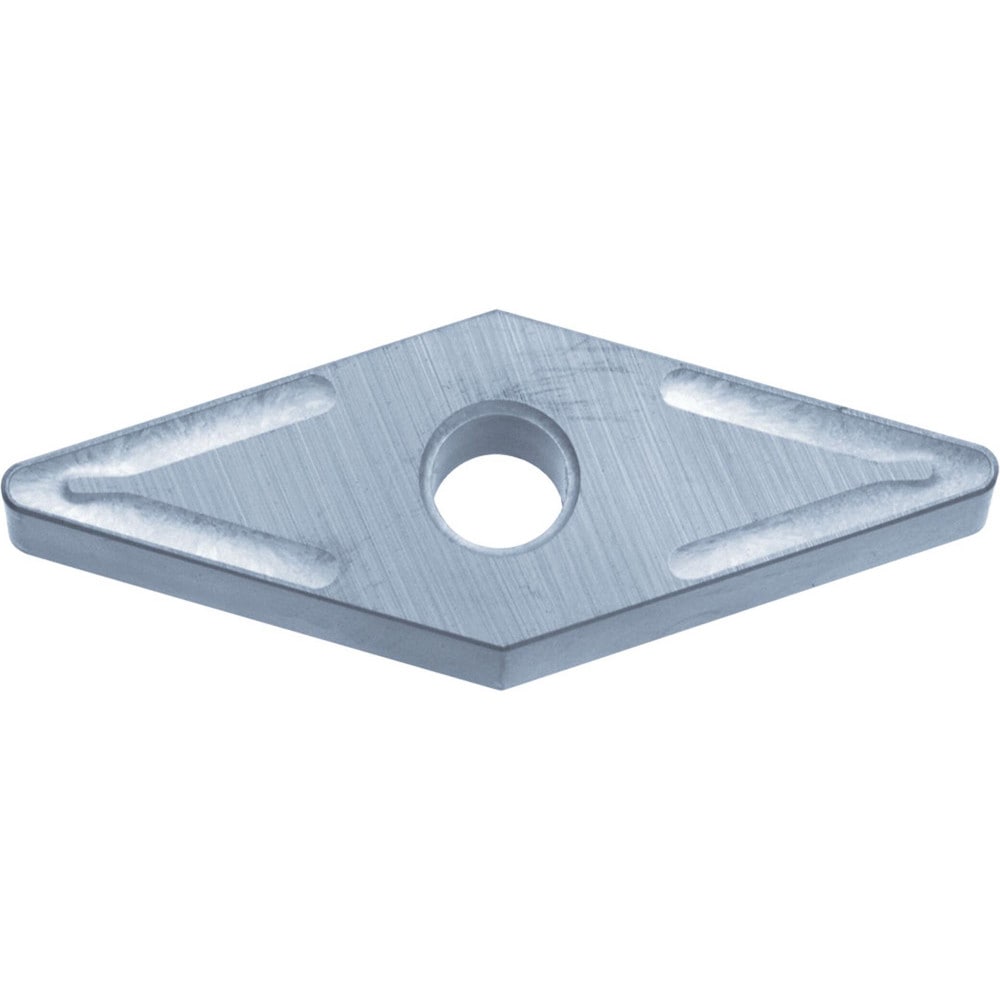

Turning Insert: VNMX332 TN610, Cermet
Item #: 28470300
Brand: Kyocera
Model #: 8863765
Product Specifications
| ANSI Insert Code | VNMX332 |
| ISO Insert Code | VNMX160408 |
| Relief Angle | 0 |
| Insert Style | VNMX |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 35 |
| Manufacturer Grade | TN610 |
| Coating/Finish | TiCN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | ISOI |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Cermet |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.4360 |
| Insert Holding Method | Pin; Clamp |
| Width (Inch) | 3/8 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 1.3080 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P; M |
| Iso Code | VNMX332 |
| Manufacturers Catalog Number | 8863765 |
| Material Grade | P01; P10 |
| Coating Classification | Uncoated |
| Industry Standard Number | VNMX332TN610 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Facing; Copying; Undercutting |
| ANSI Size Code | 332 |
| ISO Size Code | 160408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 332 |
