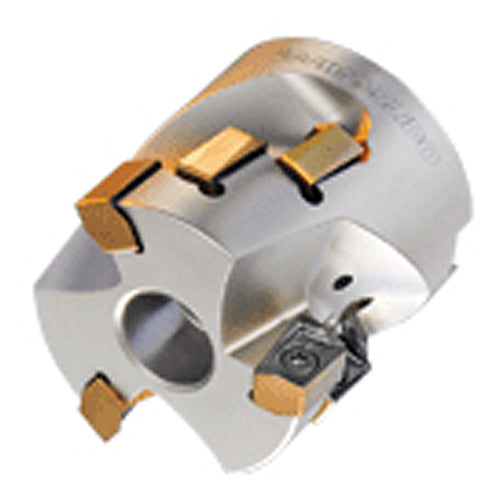

H490 SM D063-60-3-27-17C
Item #: EH3194046
Brand: Iscar
Model #: 3194046
| Product Specifications | |
|---|---|
| Application | | Shouldering | |
| Master Insert Identification (MIID) | H490 ANKX 170604PNTR |
| Cutting Item Count (CICT) | 12 |
| Coolant Supply Property (CSP) | Through Hole |
| Depth of Cut Maximum (APMX) | 58.5 mm |
| Arbor Style | A |
| Cutting Diameter (DC) | 63 mm |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 59.4 mm |
| Measurement Type | Metric |
| Flute Count (NOF) | 3 |
| Body Material | Steel |
| Overall Length (OAL) | 85 mm |
| Tool Type | 90° Extended flute shell mill |
| Cutting Length | 58.5 mm |
