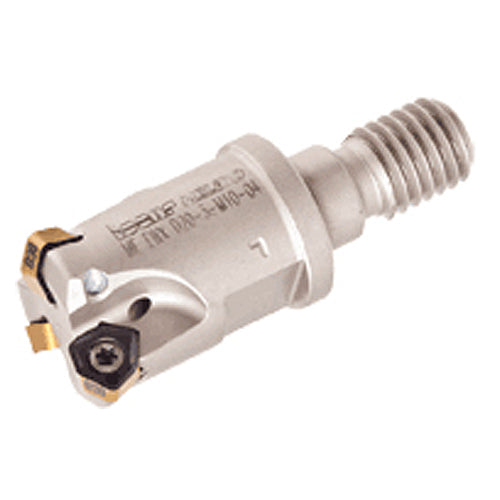

MF EWX D25-4-M12-04
Item #: EH3181225
Brand: Iscar
Model #: 3181225
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 0.709″ |
| Tool Type | Fast Feed Endmill |
| Cutting Diameter (DC) | 0.709″ |
| Connection Thread Nominal Size Machine Side (THSZMS) | M12 |
| Cutting Diameter Maximum (DCX) | 0.984″ |
| Drive Size (DRVS) | 0.669″ |
| Cutting Item Count (CICT) | 4 |
| Flute Count (NOF) | 4 |
| Depth of Cut Maximum (APMX) | 0.059″ |
| Torque (TQ) | 8 lbfxin |
| Overall Length (OAL) | 2.126″ |
| Coolant Supply Property (CSP) | Through Hole |
| Ramping Angle Maximum (RMPX) | 1.7 Degrees |
| Tool Cutting Edge Angle (KAPR) | 30 Degrees |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Rampdown | Side Plunging | |
| Cutting Direction (HAND) | Right Hand |
| Master Insert Identification (MIID) | H600 WXCU 040310T |
| Measurement Type | Inch |
| Weight of Item (WT) | 0.2 Lbs |
| Body Material | Steel |
| Functional Length (LF) | 1.26″ |
| Connection Code Machine Side (CCMS) | FLEXFIT |
