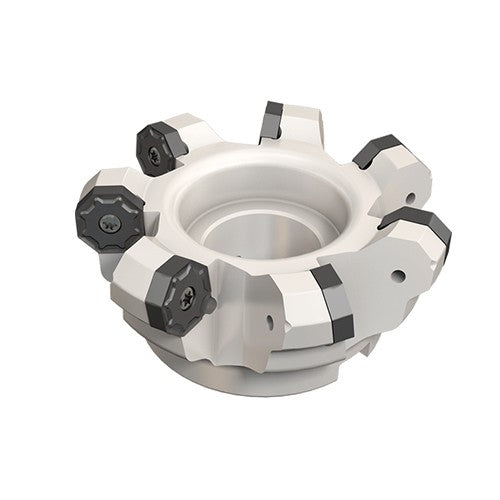

F45NM D125-08-38.10-R08
Item #: EH3181199
Brand: Iscar
Model #: 3181199
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 137 mm |
| Arbor Style | B |
| Cutting Diameter (DC) | 125 mm |
| Master Insert Identification (MIID) | ONHU 080608-TN |
| Cutting Diameter Maximum (DCX) | 137 mm |
| Body Material | Steel |
| Cutting Item Count (CICT) | 8 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 5.5 mm |
| Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 38.1 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 63 mm |
| Tool Cutting Edge Angle (KAPR) | 44.3 Degrees |
| Hub Diameter (DHUB) | 80 mm |
| Tool Type | 45° Facemills |
