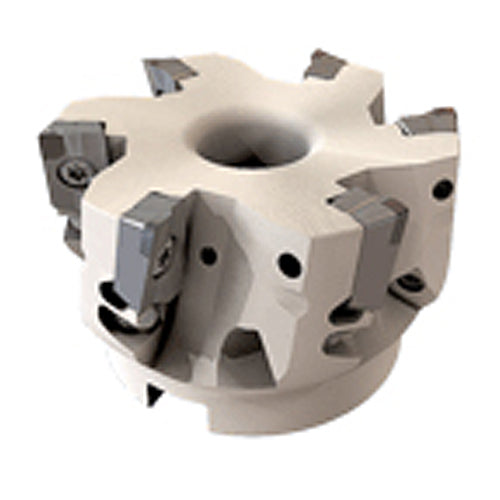

F90AD D050-04-22-SFR
Item #: EH3181033
Brand: Iscar
Model #: 3181033
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 50 mm |
| Master Insert Identification (MIID) | ADKW 1505 PDER |
| Cutting Diameter (DC) | 50 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Cutting Item Count (CICT) | 4 |
| Body Material | Steel |
| Depth of Cut Maximum (APMX) | 2 mm |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm |
| Application | | Facing | Shouldering | |
| Overall Length (OAL) | 40 mm |
| Measurement Type | Metric |
| Hub Diameter (DHUB) | 49 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A |
| Tool Type | 90° Facemills |
