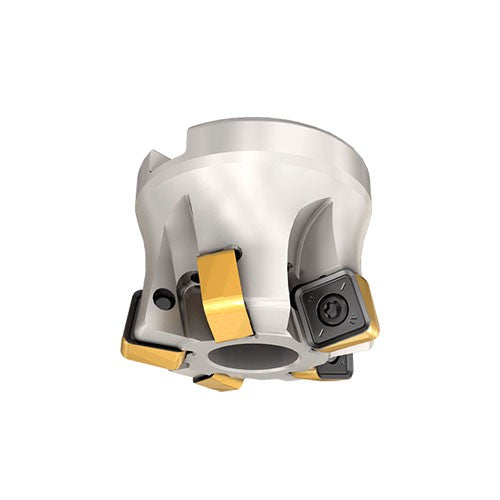

FFQ8 D4.00-08-1.50-12
Item #: EH313395205
Brand: Iscar
Model #: 3395205
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 4″ |
| Master Insert Identification (MIID) | FFQ8 SZMU 120520 |
| Cutting Diameter (DC) | 3.236″ |
| Coolant Supply Property (CSP) | Through Hole |
| Cutting Diameter Maximum (DCX) | 4″ |
| Body Material | Steel |
| Cutting Item Count (CICT) | 8 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.06″ |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Rampdown | Shouldering | |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 2″ |
| Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Hub Diameter (DHUB) | 3.23″ |
| Tool Type | Fast Feed Face mill |
| Arbor Style | B |
