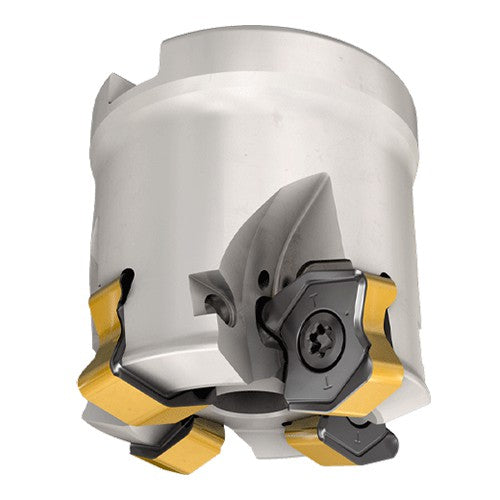

FFX4 FD4.00-8-1.50-08
Item #: EH313394313
Brand: Iscar
Model #: 3394313
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 4″ |
| Arbor Style | B |
| Cutting Diameter (DC) | 3.386″ |
| Master Insert Identification (MIID) | FFX4 XNMU 080620T |
| Cutting Diameter Maximum (DCX) | 4″ |
| Coolant Supply Property (CSP) | Through Hole |
| Cutting Item Count (CICT) | 8 |
| Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.078″ |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Overall Length (OAL) | 2″ |
| Measurement Type | Inch |
| Hub Diameter (DHUB) | 3.228″ |
| Tool Cutting Edge Angle (KAPR) | 18 Degrees |
