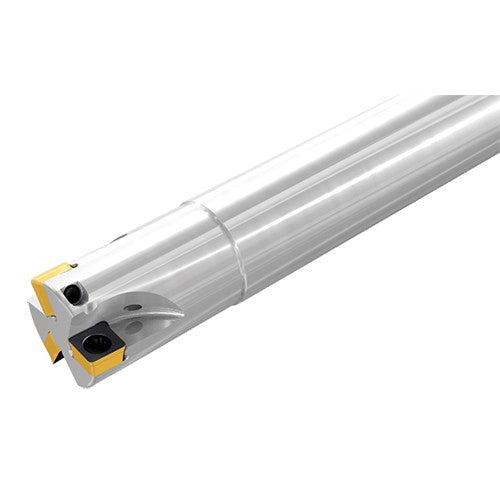

E90SO D06-1-C06-04-C
Item #: EH313384938
Brand: Iscar
Model #: 3384938
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 6 mm |
| Master Insert Identification (MIID) | SOMT 040204 PNTR |
| Cutting Diameter (DC) | 6 mm |
| Functional Length (LF) | 57 mm |
| Cutting Item Count (CICT) | 1 |
| Usable Length (LU) | 15 mm |
| Depth of Cut Maximum (APMX) | 3.5 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 57 mm |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
| Measurement Type | Metric |
| Application | | Facing | Fast Feed Milling | Profiling | Rampdown | Shouldering | Slotting | |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Connection Code Machine Side (CCMS) | Cylindrical |
