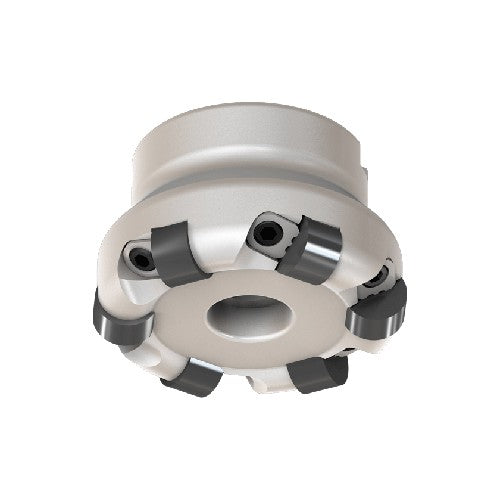

FRN D068A080-07-27-12
Item #: EH313383051
Brand: Iscar
Model #: 3383051
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 80 mm |
| Arbor Style | A |
| Cutting Diameter (DC) | 67.3 mm |
| Master Insert Identification (MIID) | RNGN 1207 |
| Cutting Diameter Maximum (DCX) | 80 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Cutting Item Count (CICT) | 7 |
| Body Material | Steel |
| Depth of Cut Maximum (APMX) | 3 mm |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 27 mm |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | Shouldering | |
| Overall Length (OAL) | 50 mm |
| Measurement Type | Metric |
| Hub Diameter (DHUB) | 58 mm |
