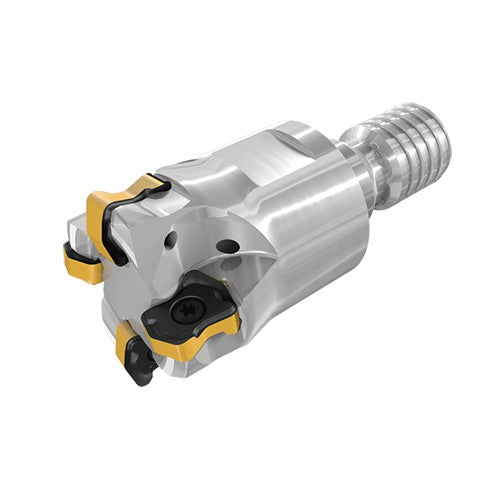

FFX4 ED42/1.65-6-M16-04
Item #: EH313369972
Brand: Iscar
Model #: 3369972
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 1.654″ |
| Functional Length (LF) | 1.575″ |
| Cutting Diameter (DC) | 1.362″ |
| Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Cutting Diameter Maximum (DCX) | 1.654″ |
| Drive Size (DRVS) | 0.984″ |
| Cutting Item Count (CICT) | 6 |
| Torque (TQ) | 0.04 lbfxin |
| Depth of Cut Maximum (APMX) | 0.0315″ |
| Coolant Supply Property (CSP) | Through Hole |
| Overall Length (OAL) | 2.559″ |
| Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Ramping Angle Maximum (RMPX) | 0.8 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1.142″ |
| Body Material | Steel |
| Master Insert Identification (MIID) | FFX4 XNMU 040310T |
| Connection Code Machine Side (CCMS) | FLEXFIT |
| Weight of Item (WT) | 0.66 lbs |
