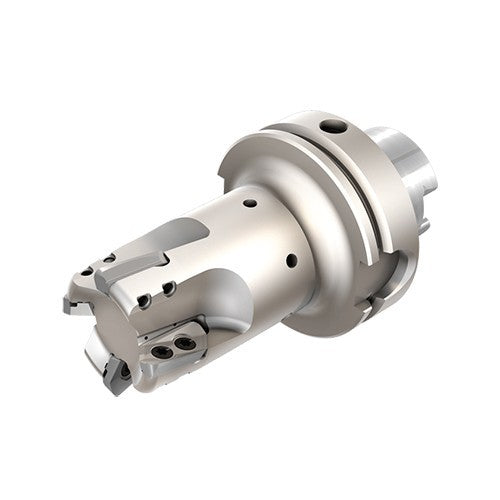

HSM90S EALD2-3-HSK80FM-22
Item #: EH313354045
Brand: Iscar
Model #: 3354045
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 2″ |
| Usable Length (LU) | 2.85″ |
| Cutting Diameter (DC) | 2″ |
| Body Material | Steel |
| Cutting Item Count (CICT) | 3 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.87″ |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 3.15″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 5.905″ |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Master Insert Identification (MIID) | HSM90S APCR 220708R |
| Shank Type | HSK80FM |
| Coolant Supply Property (CSP) | Through Hole |
| Connection Code Machine Side (CCMS) | HSK |
