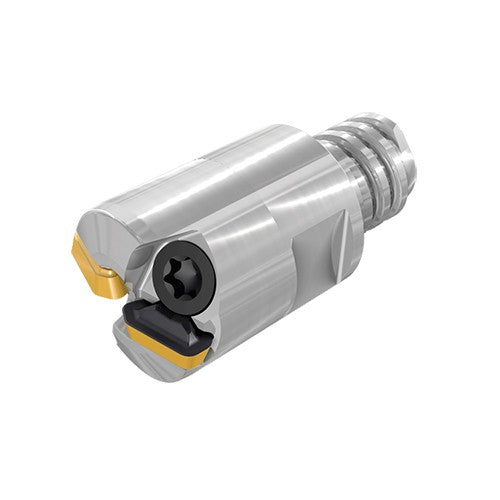

FFT3 EFMD10/.39-3MMT06-02
Item #: EH313346810
Brand: Iscar
Model #: 3346810
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 0.394″ |
| Functional Length (LF) | 0.394″ |
| Cutting Diameter (DC) | 0.165″ |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 |
| Cutting Diameter Maximum (DCX) | 0.394″ |
| Drive Size (DRVS) | 0.315″ |
| Cutting Item Count (CICT) | 3 |
| Torque (TQ) | 4.5 lbfxin |
| Depth of Cut Maximum (APMX) | 0.0236″ |
| Coolant Supply Property (CSP) | Through Hole |
| Overall Length (OAL) | 0.642″ |
| Tool Cutting Edge Angle (KAPR) | 14 Degrees |
| Ramping Angle Maximum (RMPX) | 4.7 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.382″ |
| Body Material | Steel |
| Master Insert Identification (MIID) | FFT3 TXMT 0201205T |
| Connection Code Machine Side (CCMS) | MultiMaster |
| Weight of Item (WT) | 0.02 lbs |
