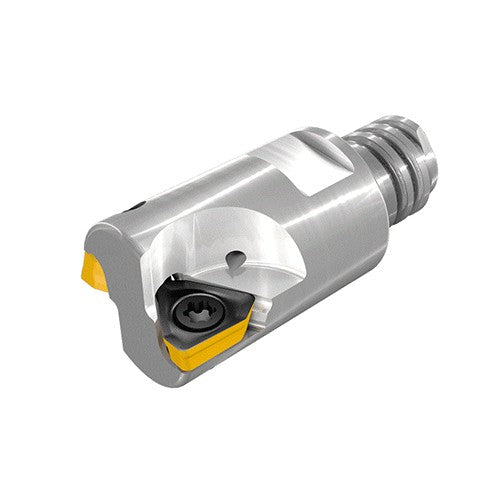

HM390 ETP D16-04-MMT10-05
Item #: EH313345999
Brand: Iscar
Model #: 3345999
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 16 mm |
| Functional Length (LF) | 18 mm |
| Cutting Diameter (DC) | 16 mm |
| Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 4 |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 |
| Depth of Cut Maximum (APMX) | 3.5 mm |
| Drive Size (DRVS) | 13 mm |
| Overall Length (OAL) | 29.8 mm |
| Flute Count (NOF) | 4 |
| Ramping Angle Maximum (RMPX) | 1.5 Degrees |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 15.6 mm |
| Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TPKT 0502PDR |
| Connection Code Machine Side (CCMS) | MultiMaster |
| Weight of Item (WT) | 0.03 kg |
