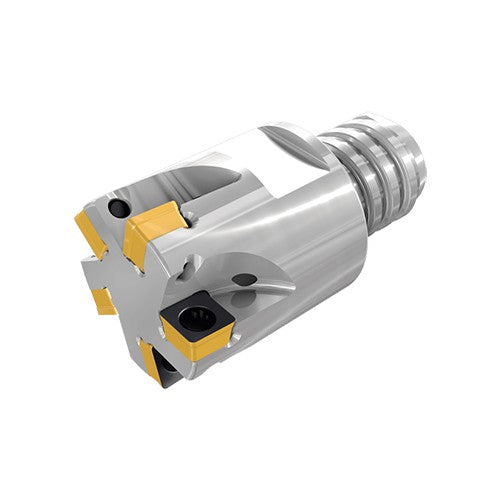

E90SO D14-4-MMT08-04
Item #: EH313340327
Brand: Iscar
Model #: 3340327
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 14 mm |
| Functional Length (LF) | 16 mm |
| Cutting Diameter (DC) | 14 mm |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 |
| Cutting Item Count (CICT) | 4 |
| Drive Size (DRVS) | 10 mm |
| Depth of Cut Maximum (APMX) | 3.5 mm |
| Flute Count (NOF) | 4 |
| Overall Length (OAL) | 23.5 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Ramping Angle Maximum (RMPX) | 2 Degrees |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Fast Feed Milling | Profiling | Rampdown | Shouldering | Slotting | |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 13.6 mm |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | SOMT 040204 PNTR |
| Body Material | Steel |
| Weight of Item (WT) | 0.01 kg |
| Connection Code Machine Side (CCMS) | MultiMaster |
