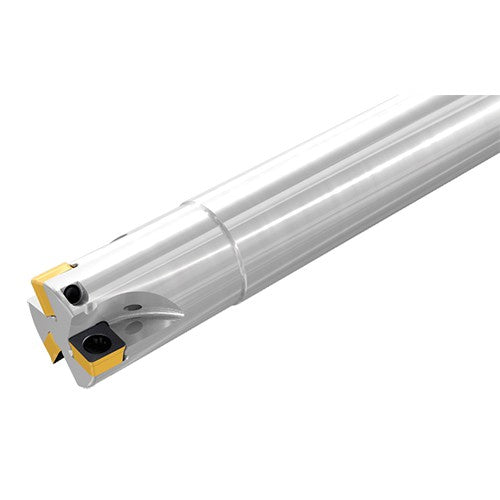

E90SO D16-5-C16-04-C
Item #: EH313340323
Brand: Iscar
Model #: 3340323
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 16 mm |
| Master Insert Identification (MIID) | SOMT 040204 PNTR |
| Cutting Diameter (DC) | 16 mm |
| Weight of Item (WT) | 0.12 kg |
| Cutting Item Count (CICT) | 5 |
| Functional Length (LF) | 90 mm |
| Depth of Cut Maximum (APMX) | 3.5 mm |
| Usable Length (LU) | 20 mm |
| Overall Length (OAL) | 90 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 2 Degrees |
| Measurement Type | Metric |
| Application | | Facing | Fast Feed Milling | Profiling | Rampdown | Shouldering | Slotting | |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Connection Code Machine Side (CCMS) | Cylindrical |
