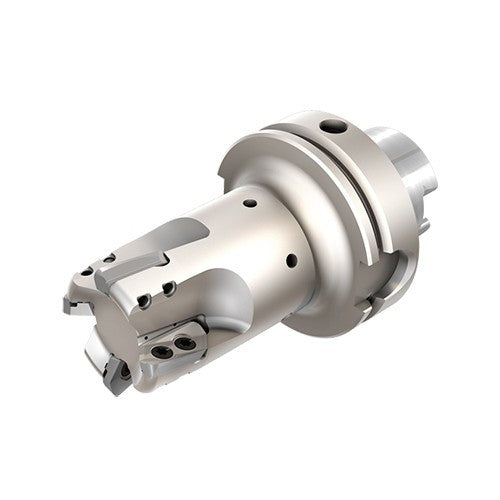

HSM90SFD50-4-63A/80MQL-22
Item #: EH313329047
Brand: Iscar
Model #: 3329047
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 50 mm |
| Usable Length (LU) | 73.1 mm |
| Cutting Diameter (DC) | 50 mm |
| Body Material | Steel |
| Cutting Item Count (CICT) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 22 mm |
| Application | | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 80 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 142 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Master Insert Identification (MIID) | HSM90S APCR 220708R |
| Shank Type | HSK A63/80 |
| Coolant Supply Property (CSP) | Through Hole |
| Connection Code Machine Side (CCMS) | HSK |
