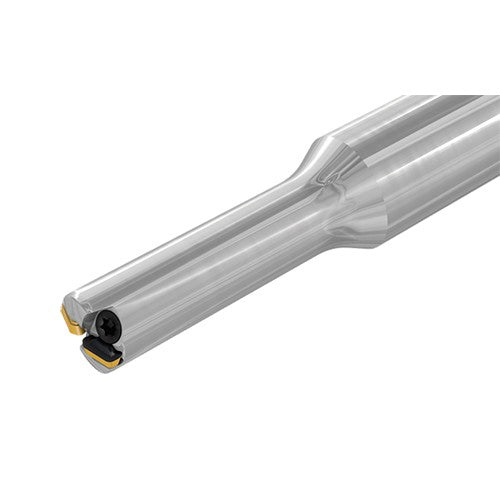

FFT3 EFM D08-2-080-C12-02
Item #: EH313326801
Brand: Iscar
Model #: 3326801
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 0.315″ |
| Weight of Item (WT) | 0.11 Lbs |
| Cutting Diameter (DC) | 0.087″ |
| Head Length (LH) | 1.181″ |
| Cutting Diameter Maximum (DCX) | 0.315″ |
| Functional Length (LF) | 3.15″ |
| Cutting Item Count (CICT) | 2 |
| Usable Length (LU) | 1.0236″ |
| Depth of Cut Maximum (APMX) | 0.0236″ |
| Torque (TQ) | 4.5 lbfxin |
| Overall Length (OAL) | 3.15″ |
| Coolant Supply Property (CSP) | Through Hole |
| Shank Type | Round |
| Tool Cutting Edge Angle (KAPR) | 14 Degrees |
| Ramping Angle Maximum (RMPX) | 10.8 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.472″ |
| Body Material | Steel |
| Master Insert Identification (MIID) | FFT3 TXMT 0201205T |
| Connection Code Machine Side (CCMS) | Cylindrical |
