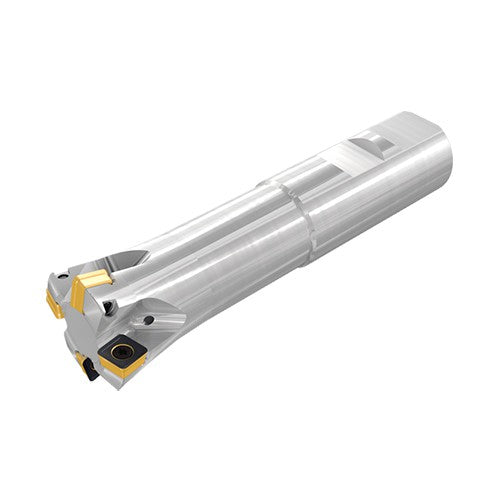

FFQ4 D022-2-044-W20-09
Item #: EH313323695
Brand: Iscar
Model #: 3323695
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 22 mm |
| Master Insert Identification (MIID) | FFQ4 SOMT 090412T |
| Cutting Diameter (DC) | 7.7 mm |
| Weight of Item (WT) | 0.19 kg |
| Cutting Diameter Maximum (DCX) | 22 mm |
| Head Length (LH) | 44 mm |
| Cutting Item Count (CICT) | 2 |
| Torque (TQ) | 2 Nxm |
| Depth of Cut Maximum (APMX) | 1.2 mm |
| Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Overall Length (OAL) | 94 mm |
| Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 8.2 Degrees |
| Measurement Type | Metric |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
