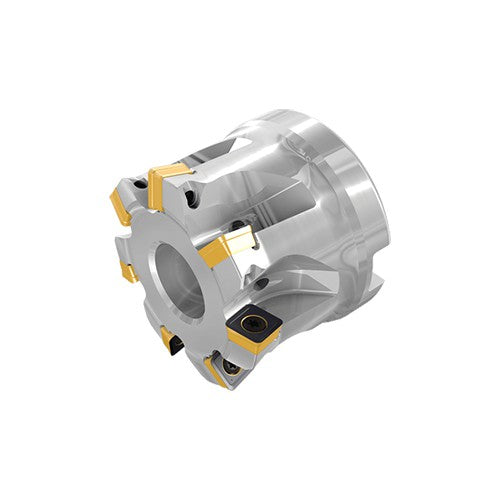

FFQ4 D63-08-22-09
Item #: EH313323460
Brand: Iscar
Model #: 3323460
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 63 mm |
| Arbor Style | A |
| Cutting Diameter (DC) | 48.7 mm |
| Master Insert Identification (MIID) | FFQ4 SOMT 090412T |
| Cutting Diameter Maximum (DCX) | 63 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Cutting Item Count (CICT) | 8 |
| Body Material | Steel |
| Depth of Cut Maximum (APMX) | 1.2 mm |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Overall Length (OAL) | 45 mm |
| Measurement Type | Metric |
| Hub Diameter (DHUB) | 48 mm |
| Tool Cutting Edge Angle (KAPR) | 12 Degrees |
