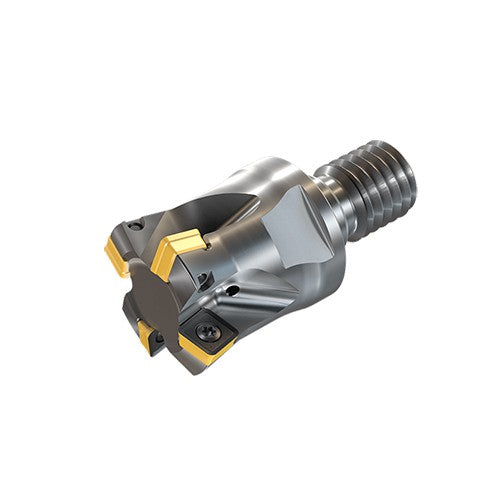

FFQ4 D040-05-M16-09
Item #: EH313323361
Brand: Iscar
Model #: 3323361
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 40 mm |
| Weight of Item (WT) | 0.18 kg |
| Cutting Diameter (DC) | 25.7 mm |
| Functional Length (LF) | 35 mm |
| Cutting Diameter Maximum (DCX) | 40 mm |
| Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Cutting Item Count (CICT) | 5 |
| Drive Size (DRVS) | 25 mm |
| Depth of Cut Maximum (APMX) | 1.2 mm |
| Torque (TQ) | 2 Nxm |
| Overall Length (OAL) | 60 mm |
| Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Ramping Angle Maximum (RMPX) | 2 Degrees |
| Measurement Type | Metric |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 29 mm |
| Connection Code Machine Side (CCMS) | FLEXFIT |
| Master Insert Identification (MIID) | FFQ4 SOMT 090412T |
